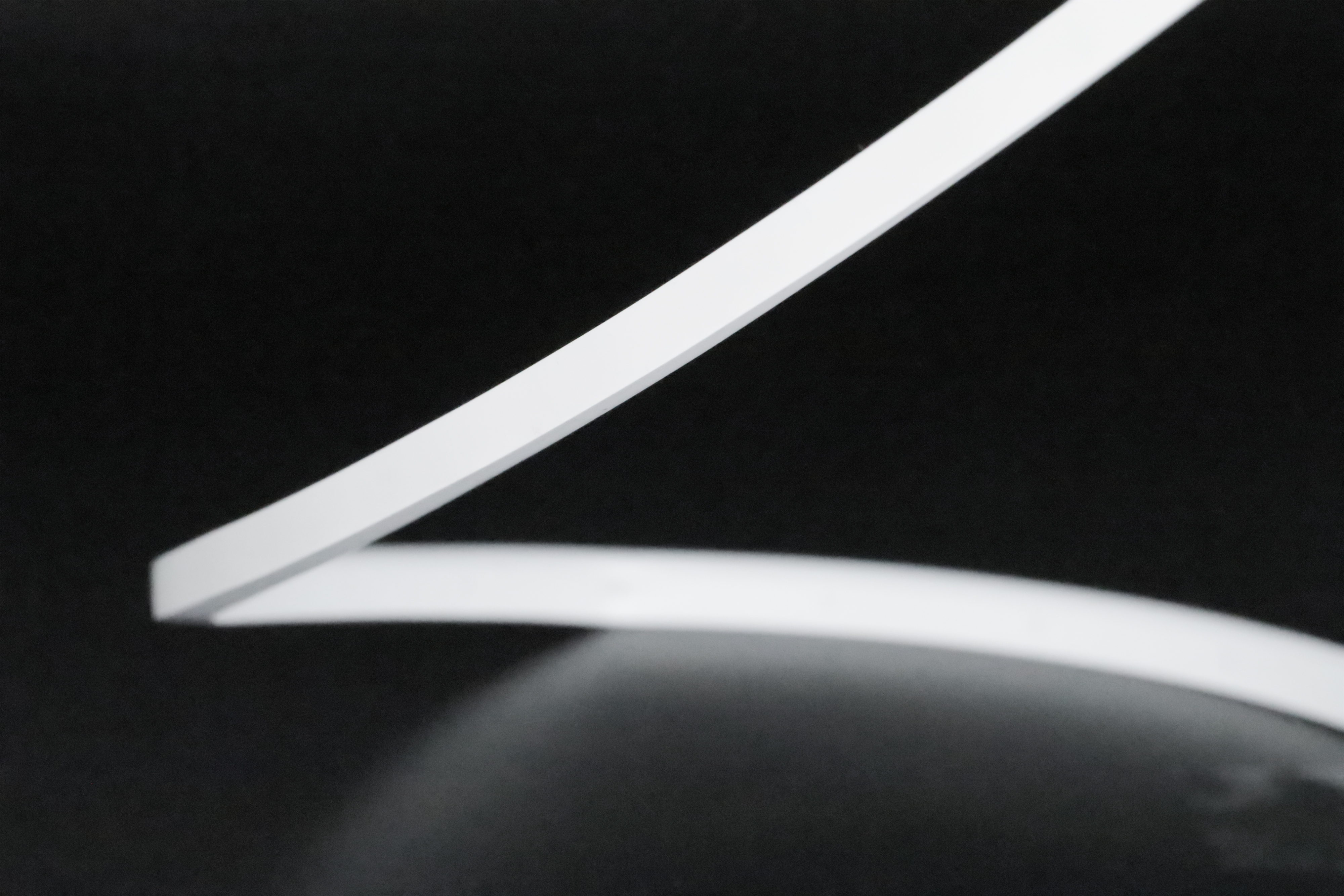

LINIO NEON 0606X TV (IP65)

100 lumen outputs·Static white


▪ Max run length up to 23ft (7m) from single power feed

▪ Field cuttable & joinable

▪ Low voltage DC24V

▪ 100 lumen outputs

▪ IP65 rated, ideal for indoor uses

▪ 5 years warranty


Inquiry
Download
Spec Sheet - LINIO NEON 0606X TV (Rev.5-Apr-25)
IES - LINIO NEON 0606X TV
Install Manual - LINIO NEON 0606 TV (Rev.2024-10-15) - US
Specify your products
Product Code:
LN0606XTV
-
W5
-
24
-
-
183
-
-
-
-
-
-
Copy
Reset
1. Series
LN0606XTV
2. Environment
W5-Wet (IP65)
3. Voltage
24-DC24V
4. Temp./Color
22-2200K
27-2700K
30-3000K
35-3500K
40-4000K
57-5700K
5. Power
183-1.83W
6. End Cap
IJ-Injected end cap (IP54)
IJC-Clear injected end cap (IP54)
SEC-Silicone end cap (IP65)
7. Left Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
8. Left Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
9. Right Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
10. Right Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
11. Length (ft)
* Customizable—Consult Factory
Technical specifications

Series: LN0606XTV


Temp./Color

1.83W/ft

2200K

109

2700K

132

3000K

142

3500K

140

4000K

145

5700K

134


Compatible drivers
KVD Series (0-10V Dimming)
KVD Series (0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: 0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Built-in active PFC

• Protection: short circuit/over load/over heat

• 0-100% dimmable with dimmer
KVG Series (Triac/0-10V Dimming)
KVG Series (Triac/0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• 5 in 1 dimmable: Triac/0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
KVF Series (Phase cut/Triac Dimming)
KVF Series (Phase cut/Triac Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: Triac/Phase/ELV/MLV

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Load: 10-100%

• Protection: short circuit/over load/over heat

• Flicker-free
KV Series (Non Dimming)
KV Series (Non Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Non-dimmable

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
Related accessories
Silicone Front End Cap
Silicone Front End Cap

Glue installation
Silicone Side End Cap
Silicone Side End Cap

Glue installation
Silicone Bottom End Cap
Silicone Bottom End Cap

Glue installation
Silicone Closed End Cap
Silicone Closed End Cap

Glue installation
