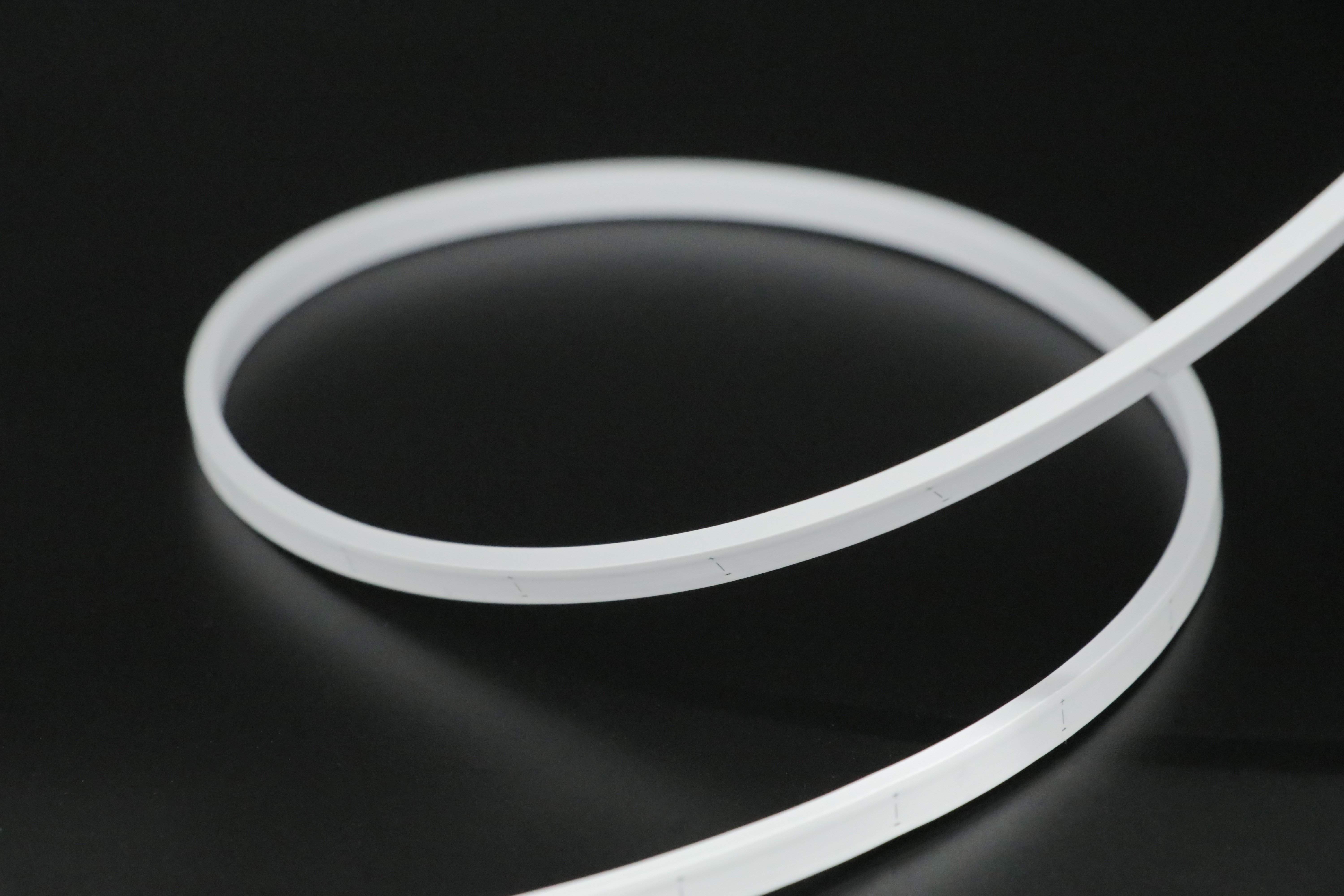

LINIO NEON 0306X SV (IP65)

20 lumen outputs·Static white


▪ Field cuttable & joinable

▪ Low voltage DC24V

▪ 20 lumen outputs

▪ IP54 rated for injected end cap; IP65 rated for silicone end cap

▪ 5 years warranty




Inquiry
Download
Spec Sheet - LINIO NEON 0306 SV (Rev.12-Aug-25)
Specify your products
Product Code:
LN0306XSV
-
W5
-
24
-
-
152
-
-
-
-
-
-
Copy
Reset
1. Series
LN0306XSV
2. Environment
W5-Wet (IP65)
3. Voltage
24-DC24V
4. Temp./Color
22-2200K
27-2700K
30-3000K
35-3500K
40-4000K
57-5700K
5. Power
152-1.52W
6. End Cap
IJ-Injected end cap (IP54)
SEC-Silicone end cap (IP65)
7. Left Feed Entry (A)
F-Front
C-Closed
8. Left Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
9. Right Feed Entry (A)
F-Front
C-Closed
10. Right Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
11. Length (ft)
* Customizable—Consult Factory
Technical specifications

Series: LN0306XSV


Temp./Color

1.52W/ft

2200K

20

2700K

21

3000K

24

3500K

24

4000K

26

5700K

27


Compatible drivers
KVD Series (0-10V Dimming)
KVD Series (0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: 0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Built-in active PFC

• Protection: short circuit/over load/over heat

• 0-100% dimmable with dimmer
KVG Series (Triac/0-10V Dimming)
KVG Series (Triac/0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• 5 in 1 dimmable: Triac/0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
KVF Series (Phase cut/Triac Dimming)
KVF Series (Phase cut/Triac Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: Triac/Phase/ELV/MLV

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Load: 10-100%

• Protection: short circuit/over load/over heat

• Flicker-free
KV Series (Non Dimming)
KV Series (Non Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Non-dimmable

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
Related accessories
Silicone Front End Cap
Silicone Front End Cap

Glue installation
Silicone Side End Cap
Silicone Side End Cap

Glue installation
Silicone Bottom End Cap
Silicone Bottom End Cap

Glue installation
Silicone Closed End Cap
Silicone Closed End Cap

Glue installation
