Side Bend

LINIO NEON 1615 SV (IP67)

250 lm. @4.57W/ft 3000K · Outdoor · White

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC Project phase

• All dimming protocols dimmable Date

• Max run length up to 82ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet IES File

LINIO NEON 1615 SV TW (IP67)

316 lm. @4.57W/ft 2700K+5300K · Outdoor · Tunable White

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC

• Tunable white, CCT changing from 2700K to 5300K

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet

LINIO NEON 1615 SV RGB (IP67)

137 lm. @4.57W/ft · Outdoor · RGB

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC

• RGB allows for versatile lighting effects

• Max run length up to 43ft from single power feed

• All dimming protocols dimmable

• UV stable without yellowing or cracking over time

Spec sheet

LINIO NEON 0612X SV (IP67)

116 lm. @2.93W/ft 3000K · Outdoor · Horizontal bending

• Field cuttable & joinable

• Low voltage 24V DC Project phase

• All dimming protocols dimmable Date

• Max run length up to 43ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 0612X SV TW (IP67)

157 lm. @3.96W/ft 2700K+5300K · Outdoor · Tunable White

• Field cuttable & joinable

• Low voltage 24V DC

• Tunable white, CCT changing from 2700K to 5300K

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet Install guide

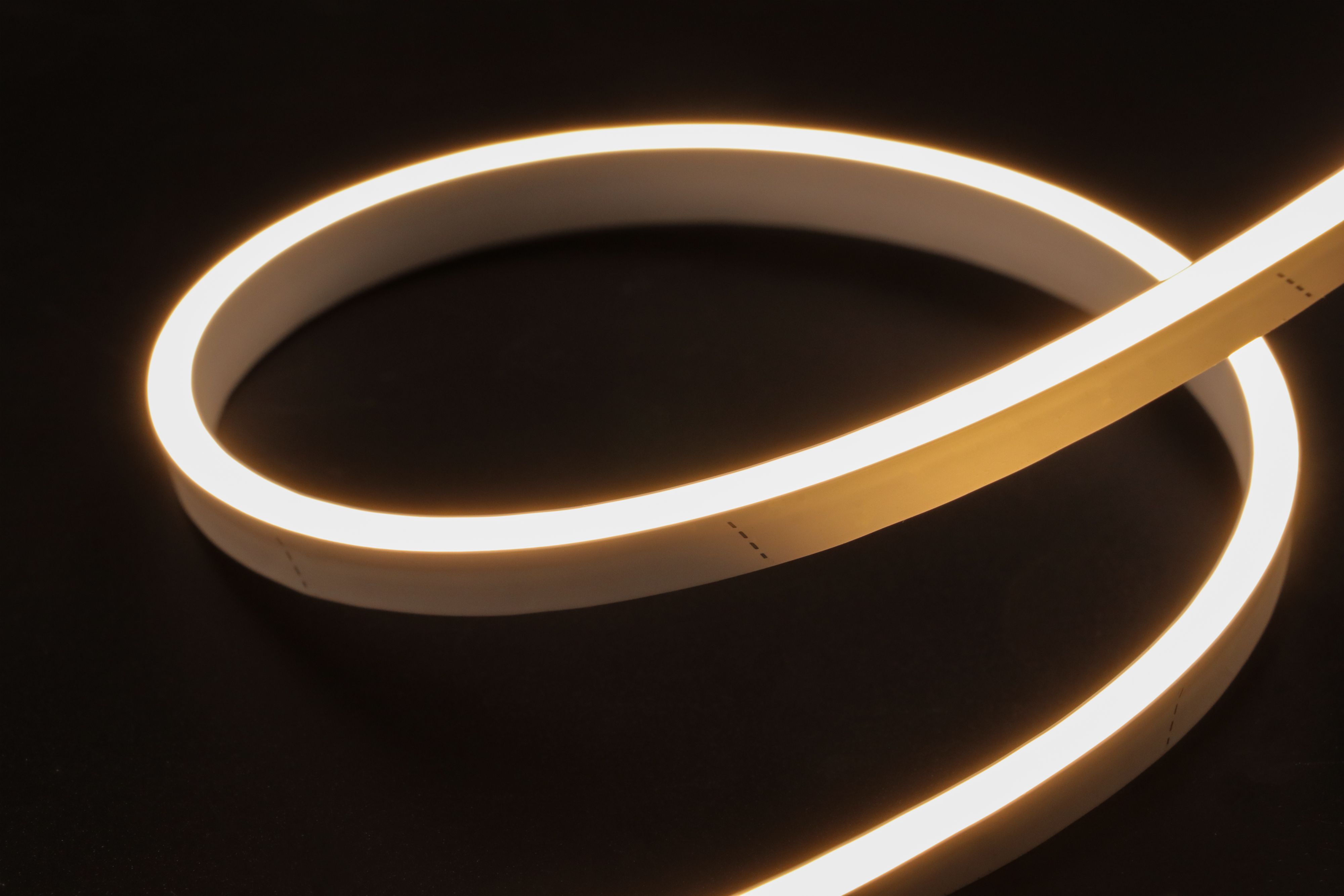

LINIO NEON 0408X SV (IP65)

66 lm. @1.83W/ft 3000K · Outdoor · Horizontal bending

• Field cuttable & joinable

• Low voltage 24V DC Project phase

• All dimming protocols dimmable Date

• Ultra-thin profile, perfect for the designs you need

• IP65 rated for silicone end cap, IP54 for injected end cap

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 0408X SV TW (IP65)

49 lm. @1.83W/ft 2700K+6000K · Outdoor · Tunable White

• Field cuttable & joinable

• Low voltage 24V DC

• Tunable white, CCT changing from 2700K to 6000K

• IP65 rated for silicone end cap, IP54 for injected end cap

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet Install guide

LINIO NEON 1617 SV (IP67)

251 lm. @4.39W/ft 3000K · Outdoor · White

• UL-listed

• Factory assembly

• Low voltage 24V DC Project phase

• All dimming protocols dimmable Date

• Max run length up to 98.4ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 1617 SV TW (IP67)

238 lm. @3.96W/ft 2700K+5300K · Outdoor · Tunable White

• Factory assembly

• Low voltage 24V DC

• Tunable white, CCT changing from 2700K to 5300K

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet Install guide

LINIO NEON 1617 SV RGB (IP67)

77 lm. @3.9W/ft · Outdoor · RGB

• Factory assembly

• Low voltage 24V DC

• RGB allows for versatile lighting effects

• Max run length up to 43ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 1617 SV RGBW (IP67)

167 lm. @5.18W/ft RGBW (W-3000K) · Outdoor

• Factory assembly

• Low voltage 24V DC

• RGBW allows for versatile lighting effects

• Max run length up to 29.5ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 1617 SV PIXEL RGBW (IP67)

140 lm. @6.71W/ft PIXEL RGBW (W-3000K) · Outdoor

• Factory assembly

• Low voltage 24V DC

• Color chasing effects

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet Install guide

LINIO NEON 1010X SV (IP67)

198 lm. @3.35W/ft 3000K · Outdoor · Horizontal bending

• Field cuttable & joinable

• Low voltage 24V DC Project phase

• All dimming protocols dimmable Date

• Max run length up to 26.2ft from single power feed

• IP67 rated, ideal for indoor and outdoor use

• UV stable without yellowing or cracking over time

Spec sheet Install guide

LINIO NEON 1220 SV (IP67)

124 lm. @4.57W/ft 3000K · Outdoor · White

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC

• All dimming protocols dimmable

• Max run length up to 88ft from single power feed

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

Spec sheet IES File

LINIO NEON 1220 SV TW (IP67)

159 lm. @4.57W/ft 2700K+5300K · Outdoor · Tunable White

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC

• Tunable white, CCT changing from 2700K to 5300K

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

• 5 years warranty

Spec sheet IES File

LINIO NEON 1220 SV RGB (IP67)

61 lm. @3.35W/ft · Outdoor · RGB

• UL-listed

• Field cuttable & joinable

• Low voltage 24V DC

• RGB allows for versatile lighting effects

• Max run length up to 42ft from single power feed

• IP67 rated, ideal for indoor and outdoor uses

• UV stable without yellowing or cracking over time

Spec sheet IES File
